Magnetic Filter Installation Edinburgh

Sludge and debris can build up inside a wet central heating system over time. Some of that contamination contains magnetic iron oxide, often called magnetite, which can circulate through radiators, pipework and the boiler.

A magnetic system filter is designed to collect this material before it continues around the heating system.

ReliaHeat can install and service magnetic filters across Edinburgh, Midlothian and East Lothian, either as part of other heating work or where a suitable filter can be added to an existing system.

Call 07502183583 Ask About a Magnetic Filter

Magnetic Filter Installation Edinburgh

A magnetic system filter is designed to collect this material before it continues around the heating system.

ReliaHeat can install and service magnetic filters across Edinburgh, Midlothian and East Lothian, either as part of other heating work or where a suitable filter can be added to an existing system.

Ask About a Magnetic Filter Call 07502183583

What Does a Magnetic Filter Do?

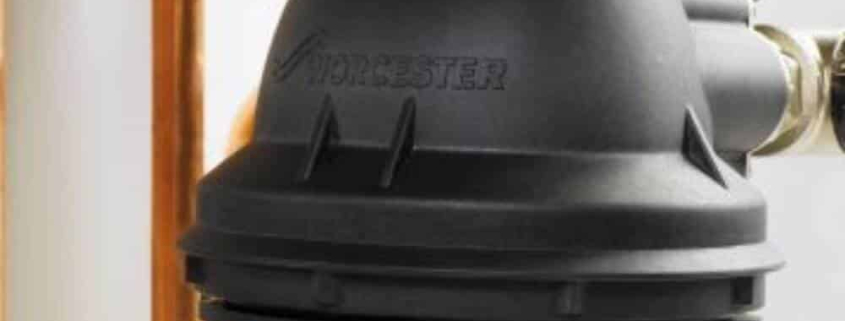

A magnetic filter is normally fitted into the central heating pipework close to the boiler.

As heating water passes through the filter, a strong internal magnet captures circulating magnetic debris such as magnetite.

Some system filters are also designed to collect non-magnetic debris.

The collected material remains inside the filter until it is removed during cleaning or servicing.

Why Does Sludge Build Up in a Heating System?

Central heating systems contain water and metal components. Over time, corrosion can produce iron oxide which combines with other contamination inside the system.

This can form the dark material commonly referred to as heating-system sludge.

The amount present varies considerably from one system to another. Older systems, previous leaks, poor water treatment and repeated topping-up can all affect the condition of the system water.

What Problems Can Heating Sludge Cause?

Heavy contamination can contribute to problems such as:

Radiators heating unevenly
Cold areas on radiators
Restricted circulation
Noisy heating-system components
Dirty water when the system is drained
Debris reaching pumps, valves and boiler components

These symptoms do not automatically mean sludge is the cause, so the system should be checked before deciding what work is required.

Can I Add a Magnetic Filter to My Existing Heating System?

In many cases, yes.

Magnetic filters can often be retrofitted to an existing central heating system provided there is a suitable location and enough access to the pipework.

The available space, pipe size and layout of the heating system all need to be considered.

ReliaHeat can inspect the existing installation and advise whether a filter can be fitted sensibly and where it should be positioned.

Will a Magnetic Filter Clean an Already Dirty System?

Not necessarily.

A magnetic filter is particularly useful for collecting debris circulating through the system, but fitting one does not automatically remove sludge that has already settled inside radiators and pipework.

If the heating system is heavily contaminated, it may need to be cleaned before or alongside installation of the filter.

Where appropriate, this could involve flushing or other water-treatment work.

Magnetic Filter or Powerflush – What’s the Difference?

They do different jobs.

A magnetic filter stays installed on the heating system and continually collects circulating magnetic debris.

A powerflush is a cleaning process used when a heating system requires more substantial removal of sludge and contamination.

Having a magnetic filter does not guarantee that a system will never require cleaning, and a powerflush does not remove the need for proper ongoing system protection.

The right approach depends on the condition of the heating system.

Plumber repairing pipework beneath a kitchen sink

Does a Magnetic Filter Need Cleaning?

Yes.

Anything captured by the filter eventually needs to be removed.

The manufacturer’s maintenance instructions should be followed, and the filter can often be checked and cleaned as part of routine heating-system or boiler maintenance.

If your boiler already has a magnetic filter installed, let us know when arranging your boiler service.

Should a Magnetic Filter Be Fitted With a New Boiler?

System cleanliness is important when a new boiler is installed.

Whether an existing filter can be retained or a new one should be fitted depends on the heating system, the boiler manufacturer’s requirements and the condition of the existing equipment.

ReliaHeat assesses the heating system as part of a new boiler survey and can include appropriate system protection in the quotation where required.

Magnetic Filter Installation Across Edinburgh and the Lothians

If you are concerned about sludge in your heating system or want to add a magnetic filter to an existing boiler installation, ReliaHeat can assess the system first.

We cover Edinburgh, Midlothian and East Lothian and will explain whether a magnetic filter, system cleaning or another repair is the appropriate next step.
